Fargo INK Element Card printer

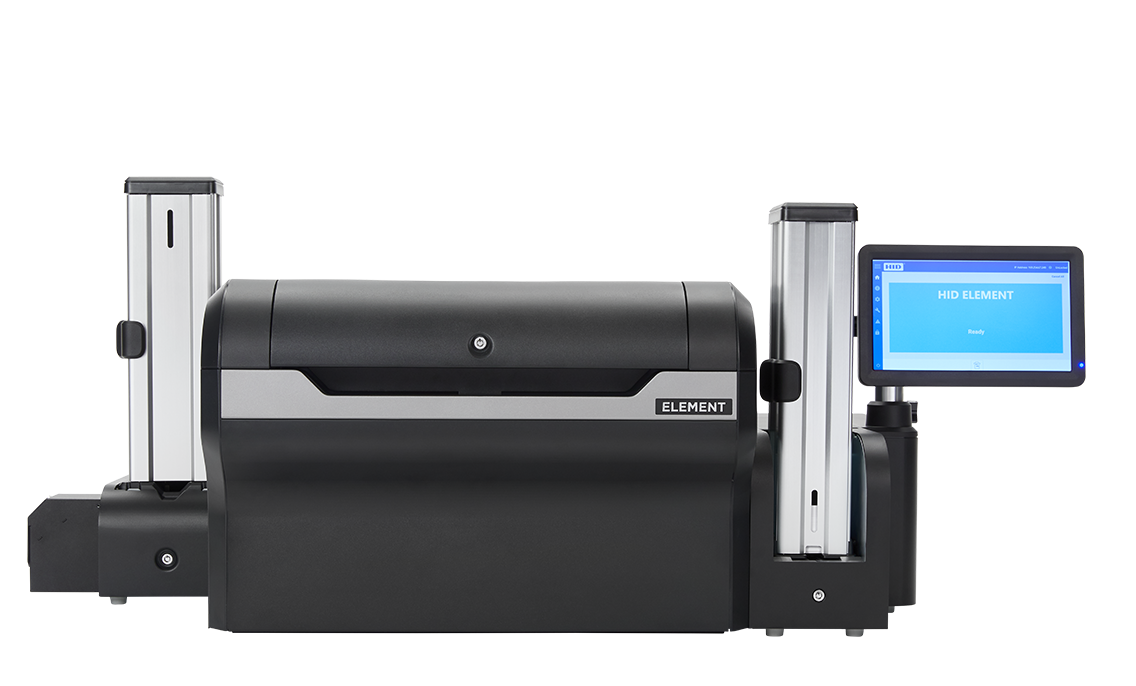

HID ELEMENT UV Ink Printing System

• Side printing: Dual-side printing standard
• Printing technology: UV cured inkjet
• UV ink types: Yellow (Y), Magenta (M), Cyan (C), Black (K), Clear Overlay (O), Fluorescent (F), White (W)
• Printer ink channels: Up to six
• Resolution: Up to 600 dpi x 1200 dpi (23.6 dots/mm x 47.2 dots/mm)
• Print speed: Up to 300 single-sided cards per hour (@ 600 dpi)
• Accepted card size: CR-80 (3.370″L x 2.125″W / 85.6mmL x 54mmW)
• Accepted card types: PVC, composite (PET/PVC with PVC as an outer layer), laminated PVC (credit card construction), polycarbonate (PC), laserable PVC
• Print area: Over-the-edge on CR-80 cards

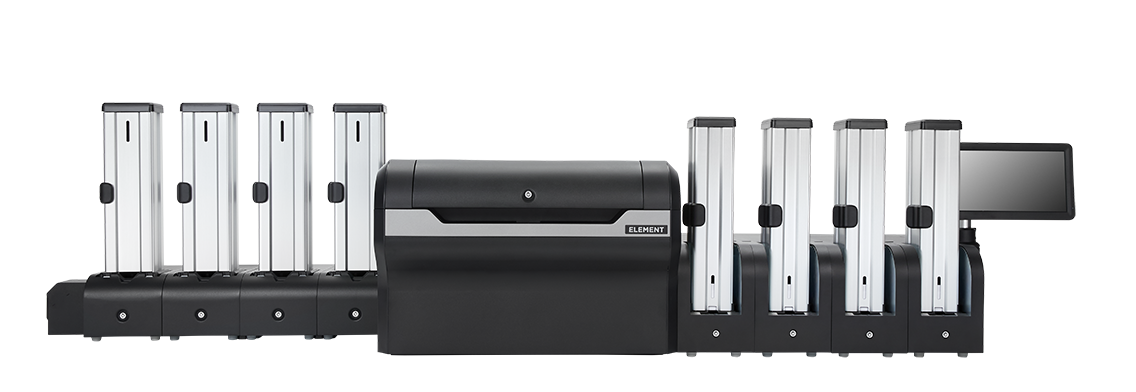

• Input card capacity: 400 cards (.030″ / .762mm thick) per input hopper — up to four hoppers may be added for a total of 1600 cards
• Output card capacity: 400 cards (.030″ / .762mm thick) per output stacker — up to four stackers may be optionally added for a total of 1600 cards
• Optional encoding: Smart card (contact/contactless), ISO magnetic encoding, support for third-party Smartware® simultaneous contact/contactless encoding
• Warranty: Printer module and printheads — 12 months
• Options: HID ELEMENT laser engraving system, up to four input hoppers/output stackers per unit, encoding, camera registration system

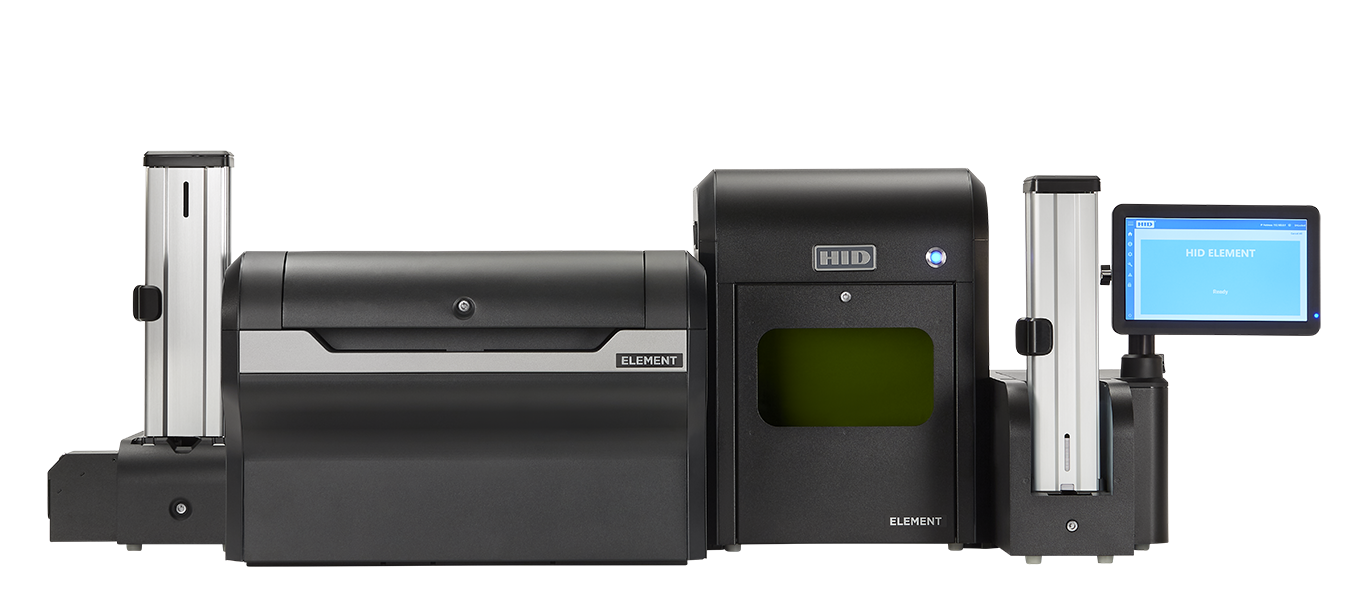

HID ELEMENT Laser Engraving System

• Marking: Dual-side standard
• Laser type: 3W standard or 8W optional air cooled DPSS laser
• Laser resolution: 600 dpi
• Laser speed: Up to 300 cards per hour depending on amount of laser marking
• Laser accepted card size: CR-80 (3.370″L x 2.125″W / 85.6mmL x 54mmW)
• Accepted card types: Polycarbonate (PC) recommended, laserable PVC
• Laser personalization types: Sub-surface and tactile laser engraving, microtext, MLI/CLI (optional)
• Laser graphics capability: True grayscale
• Input card capacity: 400 cards (.030″ / .762mm thick) per input hopper — up to four hoppers may be added for a total of 1600 cards
• Output card capacity: 400 cards (.030″ / .762mm thick) per output stacker — up to four stackers may be optionally added for a total of 1600 cards
• Optional encoding: Smart card (contact/contactless), ISO magnetic encoding, support for third-party Smartware® simultaneous contact/contactless encoding
• Warranty: Laser diode — 24 months, all other system components —12 months
• Options: HID ELEMENT UV ink printing system (combine color with UV printing system), up to four input hoppers/output stackers per unit, encoding, camera registration system, 8W laser (for faster laser marking capability), MLI/CLI
